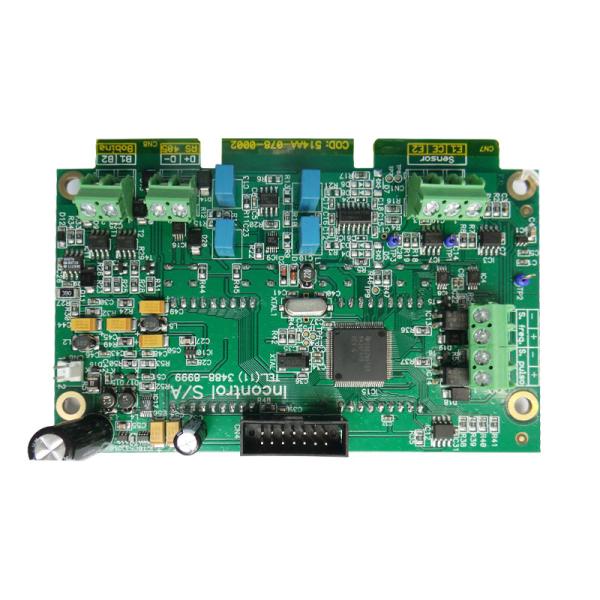

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB

Product Categories
Shenzhen Jingbang Technology Co. , Ltd
Contact Now

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB

  • 1
  • 2
  • 3

Brand Name : FASTPCBA

Model Number : One-Stop PCB Assembly

Certification : IATF16949, ISO13485, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150000 Pieces per Month

Delivery Time : 5

Packaging Details : PCB: Vacuum Packing/ PCBA: ESD Packing

Number of layers : 1-48

Material : FR4, High TG FR4, High Frequency, Alum, FPC

Min line : 0.075mm

PCBA Testing : X-ray,AOI Test,Functional test

Max size of finish board : 700*460mm

Package : QFN,BGA,SSOP,PLCC,LGA

Contact Now

Fast Delivery Double Sided Rigid Flexible PCB Board Assembly SMT Turn-key PCBA Service

PCB Capability

Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB

5000㎡+ SMT pcba factory in shenzhen china, service scopes from quick pcb prototype to mass pcb manufacturing for customers of automotive pcba,aerospace pcba, communication pcba, medical pcba, industrial pcba, smart home pcba and military pcba etc.

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB

FASTPCBA is the professional pcb factory over 20 years, who has been audited by gemany bosch. With ISO & IATF certificate, 5000㎡+ dust free and ESD protection smt workshop, FASTPCBA gets the favor of customers among industrial control, automotive, medical, smart home, power communication, military & aerospace.

FASTPCBA is famous for precise and accutate pcb manufacturing and assembly capacibility among pcba industry with 70000 points/ h placement speed, can mount 0201 & 01005 devices, identify 0.25 pitch BGA and 0.2MM connectors, we can better satisfy high density, fine pith pcb assembly requirements.

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB

FASTPCBA is the best one-stop pcba assembly supplier in china, it’s our continuous pursuit to better serve and creat more values for customers domestic and abroad.

SMT Turn Key PCBA Service Double Sided Rigid Flexible PCB
